产品简介
>集成式单元：用作实验室台式仪器；
>光学头与控制单元分离式：便于嵌入其他设备；
>OEM 版本：搭载微型控制板。
产品特点
| 操作波长 | SM: 1260 to 1650 nm PM or double-pass: 1310 ± 50 or 1550 ± 50 nm | 840±50nm or 1060 ± 50nm |
| 光学延迟范围 | 0 – 330 ps (single-pass model) 0 – 560 ps (single-pass model) 0 – 1120 ps (double-pass model) | 0 – 330 ps (single-pass model) 0 – 560 ps (single-pass model) |
| 位置精度 | ±3 μm (single-pass) ±6 μm (double-pass | ±3 μm (single-pass) |
| 位置重复性 | ±3 μm (single-pass) ±6 μm (double-pass | ±3 μm (single-pass) |
| 插入损耗 | 1.0 dB nominal (single-pass) 1.5 dB nominal (double-pass | 1.5 dB nominal (single-pass) |
| 插入损耗变化 | ±0.3 dB over entire range for 330 ps model ±0.5 dB over entire range for 560 ps model ±0.7 dB over entire range for 1120 ps model | ±0.3 dB over entire range for 330 ps model ±0.5 dB over entire range for 560 ps model |
| 光学延迟分辨率 | 0.3 μm or 1 fs per encoder count (single-pass) 0.6 μm or 2 fs per encoder count (double-pass) | |
| 光纤类型 | SMF-28 or PM Panda fiber | HI780 or PM Panda (840 nm) HI1060 or PM Panda (1060 nm) |
| 控制模式 | Panel keypad and RS-232 interface | |
| 回波损耗 | 50dB | |
| 工作温度 | 0-40℃ | |
| 消光比 | >18dB for PM mode | |
| 最大光功率 | 300mW | |
| 电源要求 | 12VDC/1A | |

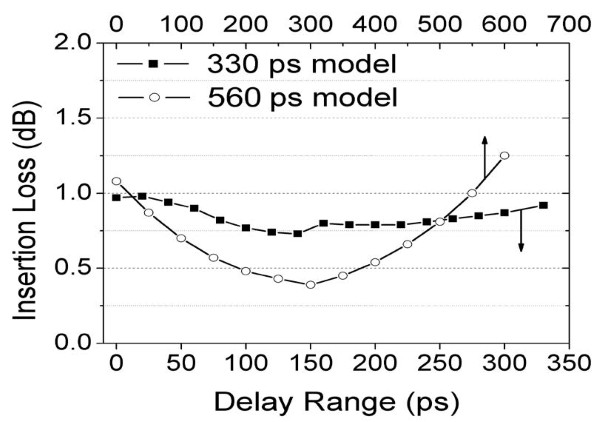

典型性能：

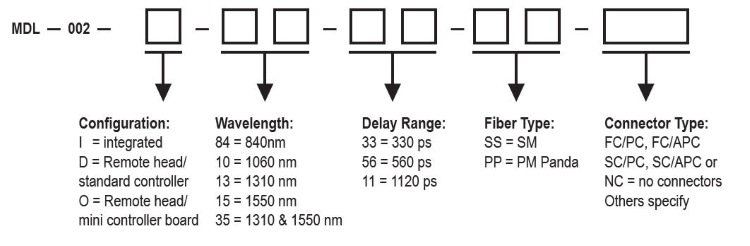

订购须知：
